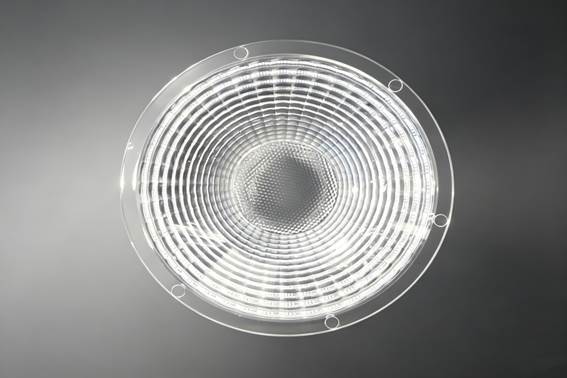

A lighting lens, also known as an LED secondary optical lens, is a specialized transparent optical component designed exclusively for lighting fixtures. Unlike general-purpose optical lenses used in cameras or microscopes, lighting lenses are engineered to reshape, redirect, and optimize the light output of LED chips, solving the inherent problem of scattered, uneven, and low-efficiency light emission from bare LED sources. Made from high-transmittance PMMA, PC, or optical glass, these lenses are essential accessories for modern commercial, residential, and industrial lighting systems.

The core working principle of lighting lenses relies on two optical phenomena: light refraction and total internal reflection (TIR). Bare LED chips emit light in a wide Lambertian angle, causing massive light waste, glare, and uneven illumination. When installed in front of LED chips, the lighting lens bends outgoing light through curved refracting surfaces and traps stray light via internal reflection. This precise light control concentrates diffused light into a targeted beam, ensuring light only covers designated areas while minimizing light loss and light pollution.

Lighting lenses serve three irreplaceable core functions in lamp design. First, they optimize luminous efficiency. Traditional lighting solutions relying only on reflector cups lose 20% to 30% of light energy through absorption and scattering, while high-quality lighting lenses can capture nearly 100% of effective photons, greatly improving overall lamp brightness and energy utilization. Second, they standardize beam angles. Manufacturers can customize 10°, 25°, 45°, 60°, and wide flood beam angles through different lens curvatures, meeting diverse lighting scenario requirements.

Third, lighting lenses eliminate harsh glare and improve visual comfort. By softening light transition edges and uniformizing light distribution, they avoid the strong flickering and dazzling effect of bare LEDs, protecting human eyes while enhancing lighting layering. In modern lamp manufacturing, lighting lenses are no longer optional accessories but core optical components that determine lamp performance, lighting effect, and energy efficiency. Understanding their basic principles is fundamental to selecting and designing high-quality LED lighting fixtures for various application scenarios.
