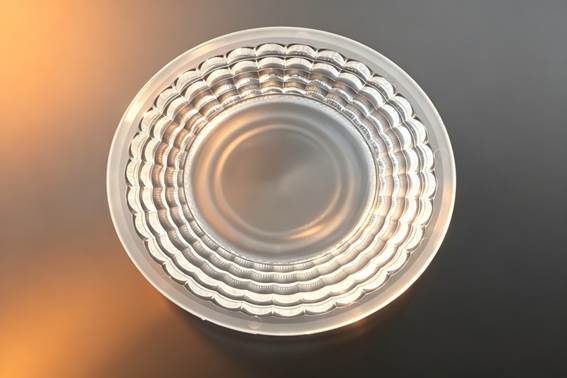

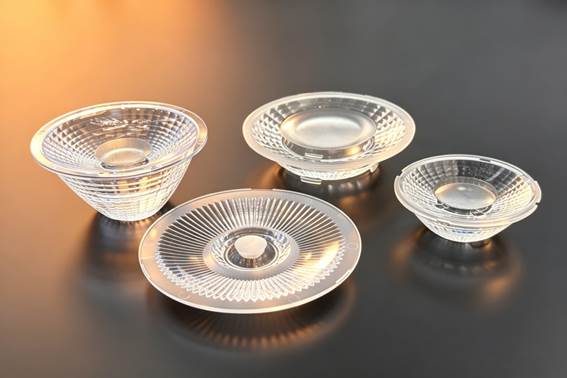

TIR (Total Internal Reflection) lighting lenses represent the advanced optical technology of modern LED lighting and are upgraded composite optical structures different from traditional single convex and concave lenses. A TIR lens integrates central refraction and side total internal reflection structures, which can fully capture the 360° scattered light of LED chips. It solves the defects of low light utilization rate and impure beam shape of traditional single lenses and reflective cups, and is widely used in high-end spotlights, automotive lights, and industrial precision lighting fixtures.

The working principle of TIR lighting lenses is highly sophisticated. The central area of the lens adopts a convex refraction structure to converge the positive light of the LED chip, while the surrounding curved side walls adopt a total internal reflection design. The stray light diffused to the sides is completely reflected inward through the lens side walls and finally output forward in an orderly manner. This structure captures nearly 100% of the LED’s effective light energy, compared with traditional reflector cups that lose 20% to 30% of light, TIR lenses greatly improve lamp luminous efficiency and energy-saving performance.

TIR lighting lenses have unparalleled advantages in beam control accuracy. They can form ultra-clean light spots with sharp edges, no stray light, and no halos, which is very suitable for high-precision lighting scenarios such as museum cultural relic lighting, high-end commercial display lighting, and stage lighting. By adjusting the internal curvature and structural proportion of TIR lenses, manufacturers can precisely customize ultra-narrow beams, elliptical beams, and rectangular light spots to meet the personalized light shape needs of different lamps.

In terms of material and durability, mainstream TIR lighting lenses are made of high-grade PMMA and PC optical plastics, featuring high temperature resistance, anti-aging, high light transmittance, and light weight. Compared with glass composite optical systems, TIR lenses are easier to mold in one piece, low in cost, and suitable for mass production. Nowadays, TIR optical technology has become the core symbol of high-end LED lighting fixtures, and is gradually replacing traditional single lenses and reflector structures, becoming the mainstream solution for modern high-efficiency and high-precision lighting.
