Light distribution is the core performance indicator of LED lighting fixtures, and optical lens design is the key factor that determines how light travels from the LED chip to the target surface. Many lighting manufacturers focus only on LED chip power but ignore optical lens design, which often results in poor lighting outcomes such as uneven illumination, stray light and wasted luminous flux. Professional optical lens design uses refraction, reflection and total internal reflection (TIR) principles to control light precisely.

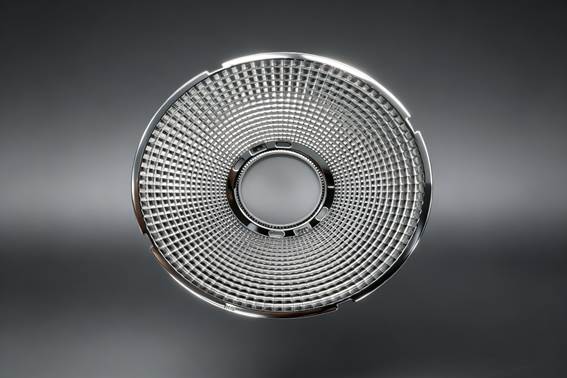

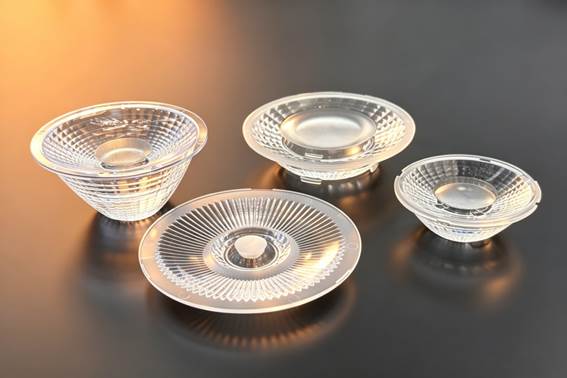

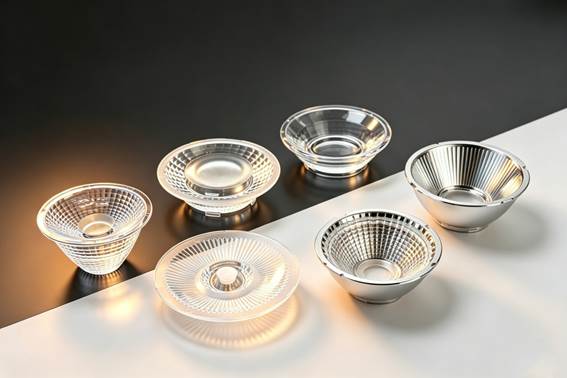

TIR lens, total internal reflection lens, is the most popular design for modern high-power LED lighting. A TIR optical lens combines a central refractive surface and a surrounding reflective surface. Light emitted from the LED chip enters the lens, part of the light refracts through the top surface directly, and wide-angle light hits the side wall of the lens and reflects toward the target surface through total internal reflection. This design collects almost all light rays from the LED chip, greatly improving light utilization efficiency. TIR lenses can achieve narrow beam angles, which is widely used in track spotlights, high bay lights and architectural lighting.

Free-form optical lens design is another advanced solution. Unlike traditional spherical lenses with regular curved surfaces, free-form lenses adopt irregular curved surfaces calculated by optical simulation software. Designers can customize the light distribution curve according to specific project requirements. For example, road lighting needs a batwing light distribution: brighter illumination on both sides of the road and lower brightness directly under the lamp. A customized free-form optical lens can realize this special light shape without extra reflectors, reduce glare and improve road surface uniformity. Free-form lenses are commonly used for street lights, tunnel lights and parking lot lighting.

The structure size of the lens also influences lighting performance. Lens diameter, center thickness and the distance between LED chip and lens (optical height) must be accurately matched. If the lens is too small, it cannot capture all light from the LED source and causes light leakage. If the matching position deviates slightly, the light spot will deform and beam angle will shift. Optical designers will use simulation software such as Zemax or TracePro to simulate light path before mold opening, predict illuminance distribution, glare level and optical loss, so as to optimize lens structure and avoid costly mold modification.

Surface treatment is also part of optical lens design. Anti-reflection coating can reduce light reflection loss on the lens surface and improve overall transmittance. Matte surface treatment can soften light spots and reduce hard edge glare. Smooth polished surface delivers sharp beam edges for accent lighting.

Good optical lens design is not one-size-fits-all. It must be customized according to LED chip package size, lamp structure, application environment and lighting requirements. Investing in professional optical lens design helps lighting products stand out in the market, cut energy consumption and meet the strict photometric standards of commercial and engineering lighting projects.
